product features

1.1 System attributes:

➢ Equipped with Android 14.0 intelligent operating system and unique UI design

➢ 8-core 64-bit high performance CPU, Cortex-A55 architecture

➢ Used for Conference training/ Classroom Teaching

1.2 Appearance and intelligent touch:

➢ Ultra narrow frame design, thickness ≤ 86mm, the overall appearance (black) frosted material

➢ 4K HD display, AG anti-glare 4MM tempered glass, Mohs grade 7 hardness, the picture is more soft

and clear

➢ The front split high precision infrared touch frame has a touch accuracy of ±1mm, a touch height

of 2mm, and supports 20-point touch control with high sensitivity

➢ The product can turn on and off the screen with a single button without turning off the

power supply of the device, reducing power consumption by more than 80%

➢ Automatically adjust the back light brightness according to the ambient light, saving energy and

protecting eyes

➢ With OPS interface, it can be expanded to dual systems; 3 USB interfaces support computer and

Android to share USB functions

➢ When used with OPS, it can freely switch between Windows and Android systems, supporting

computers, Android TVs, touch screens, and electronic whiteboards

➢ Non flicker:DC dimming, no flickering when taking pictures with mobile phones, the technology can

meet the requirements of Flicker free, and the eye protection is healthier

➢ The buttons and writing pen use antibacterial materials, no bacteria (Escherichia coli, Staphylococcus

aureus) remain, and the antibacterial rate is >99.99%, giving users a healthier use environment

1.3 Whiteboard writing:

➢ Write on the whiteboard, write with high resolution and fine strokes

➢ High performance writing software, supports single point and multi-point writing, increases the

effect of brush writing, supports whiteboard to insert pictures, add pages, gesture board erase,

zoom in, zoom out and roam, scan code sharing, any channel and any interface can be annotated

and other functions

➢ Built in annotation function, can annotate on both Android and Windows OS, support QR scanning

to download to mobile phone

➢ Support front button, quick switch touch, settings, home, recording, protect eyes, vol+/vol-

➢ Magnetic touch pen can be absorbed on the board’s front frame3

1.4 Conference training:

➢ Built-in WPS, welcome interface, and other efficient application software

➢ The built-in Bluetooth module, wireless network module and network card can realize Wi-Fi

wireless Internet connection and AP wireless hotspot transmission at the same time

➢ Wireless screen sharing, supports 4 screen sharing, realize mirror reverse control, remote snapshot,

video, music, document sharing, picture screenshot, wireless remote control confidentiality point

investment and other functions

➢ Built-in wireless projection system and reverse touch control system, support Android, iOS,

Windows, MacOS

➢ Support wireless transmitter for wireless projection, plug and play (optional)

➢ Windows PC can support Webcast function, PC can install one wireless project software, then can

wireless project

➢ Built in professional whiteboard software, full 4K resolution user interface and GIF icons

1.5 Commercial display:

➢ High-definition image processing engine: image motion compensation, color enhancement

processing, point-to-point precision display technology

➢ The interactive tablet has a floating menu, which can be called to any position on the screen by

double finger, and has functions such as enabling application software, annotating and erasing at

any time, and can be customized according to teachers teaching needs

➢ Intelligent sleep, touch screen wake up, one-click energy saving, environmental protection and

power saving, prolonging the service life

➢ Customize the boot screen, theme and background, local media player supports automatic

classification, to meet different occasions

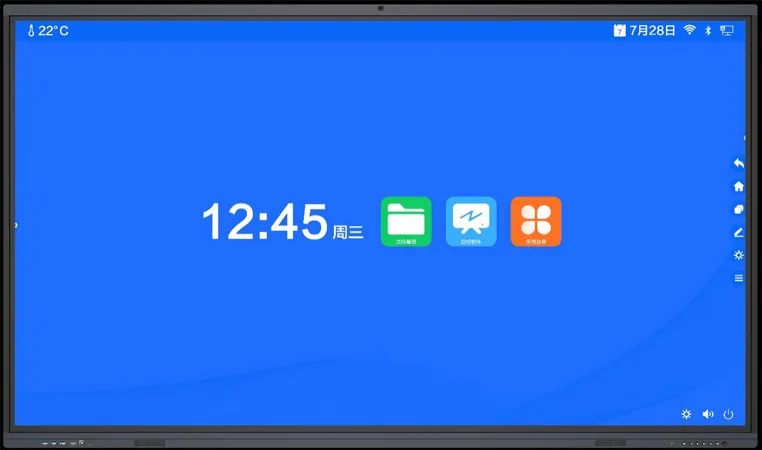

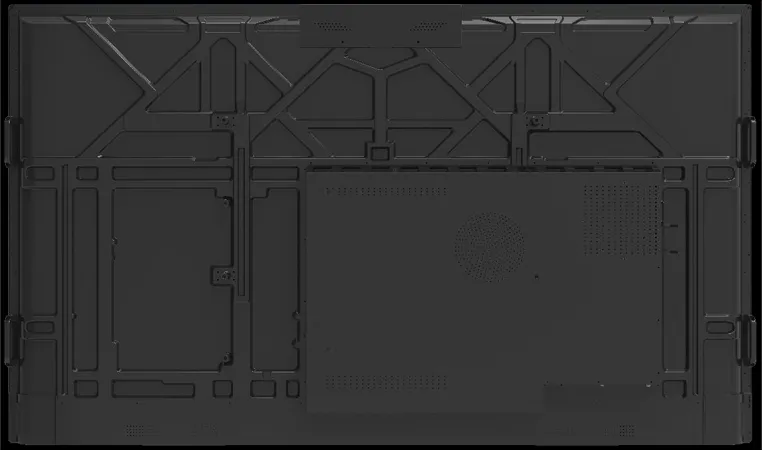

1.6 Product Photos:
